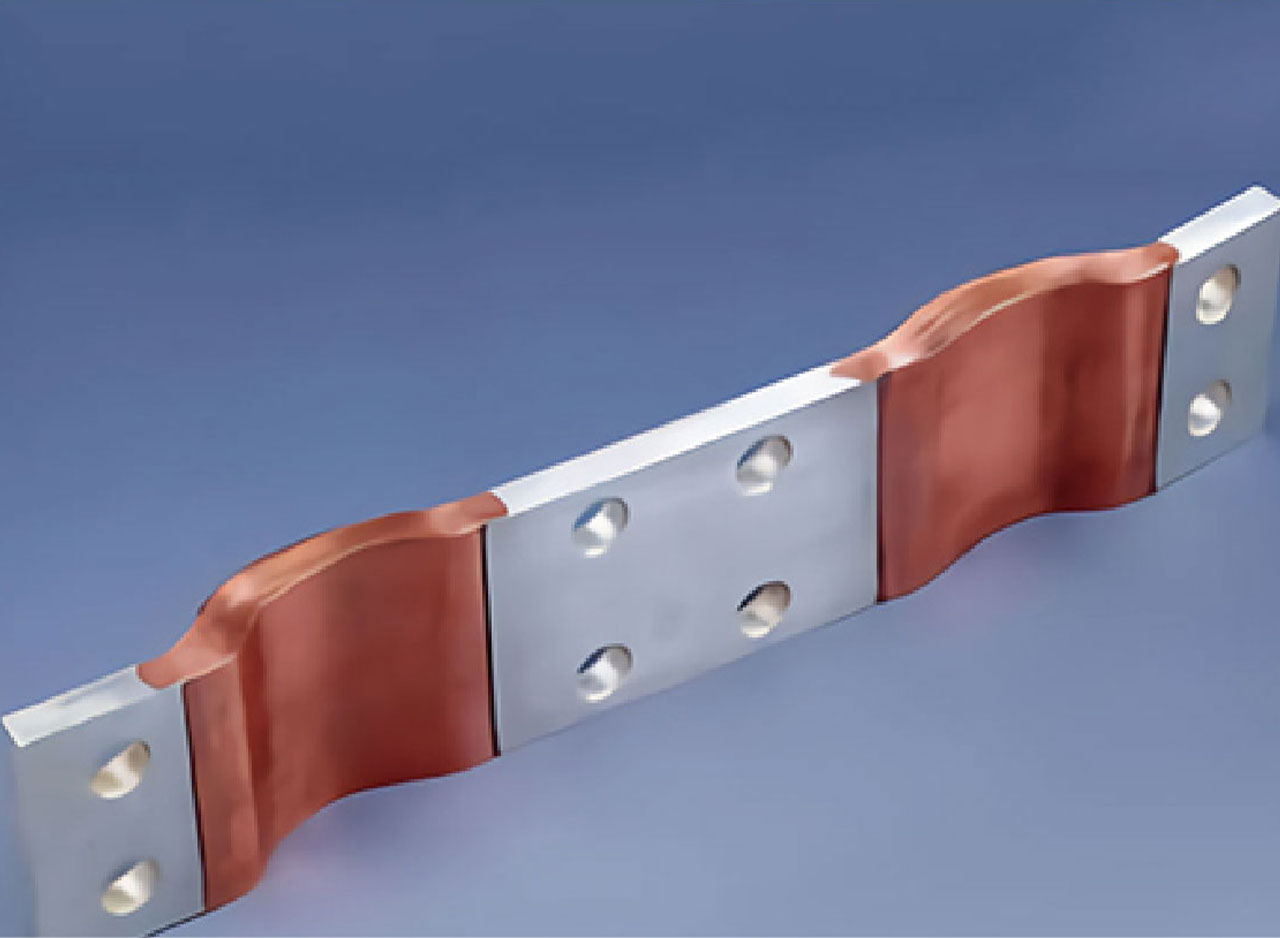

Used for flexible connections between new energy battery modules, power batteries, conductive connections of energy storage systems, high voltage distribution boxes of electric vehicles and other related fields.
| Mark | GB | JIS | ASTM | ||||
| TU1、TU2、T2 | C1020、C1100 | C10200、C10300、C11000 | |||||
| Executive standard | GB/T 5187-2021、JISH3100、ASTMB152 | ||||||
| Main Application | Used for flexible connections between new energy battery modules, power batteries, conductive connections of energy storage systems, high-voltage distribution boxes of electric vehicles and other related fields. | ||||||
| Thickness range mm | Thickness | ≥0.012-0.02 | ≥0.02-0.07 | ≥0.07-0.10 | |||
| tolerance | ±0.001 | ±0.002 | ±0.003 | ||||
| Width range mm | Width | 30-600（Custom） | |||||
| Tolerance | ±0.1 | ||||||
| Temper | O60 | H04 | O60 | H04 | O60 | H04 | |
| Strength of extense MPa | ≥165 | ≥295 | ≥170 | ≥295 | ≥175 | ≥295 | |
| Ductility % | ≥10 | - | ≥15 | - | ≥16 | - | |
| Vickers hardness HV | GB | ||||||
| Electric conductivity %IACS | GB | ||||||
Fullway Technology Co., Ltd. was founded in 2004, As a professional China New Energy Rolled Copper Foil manufacturers and wholesale New Energy Rolled Copper Foil suppliers, our products widely used in electronics, computers, communications, electric power, automotive, railway, aerospace and other fields.
