Copper strip for radio frequency cable

Copper strip for radio frequency cable

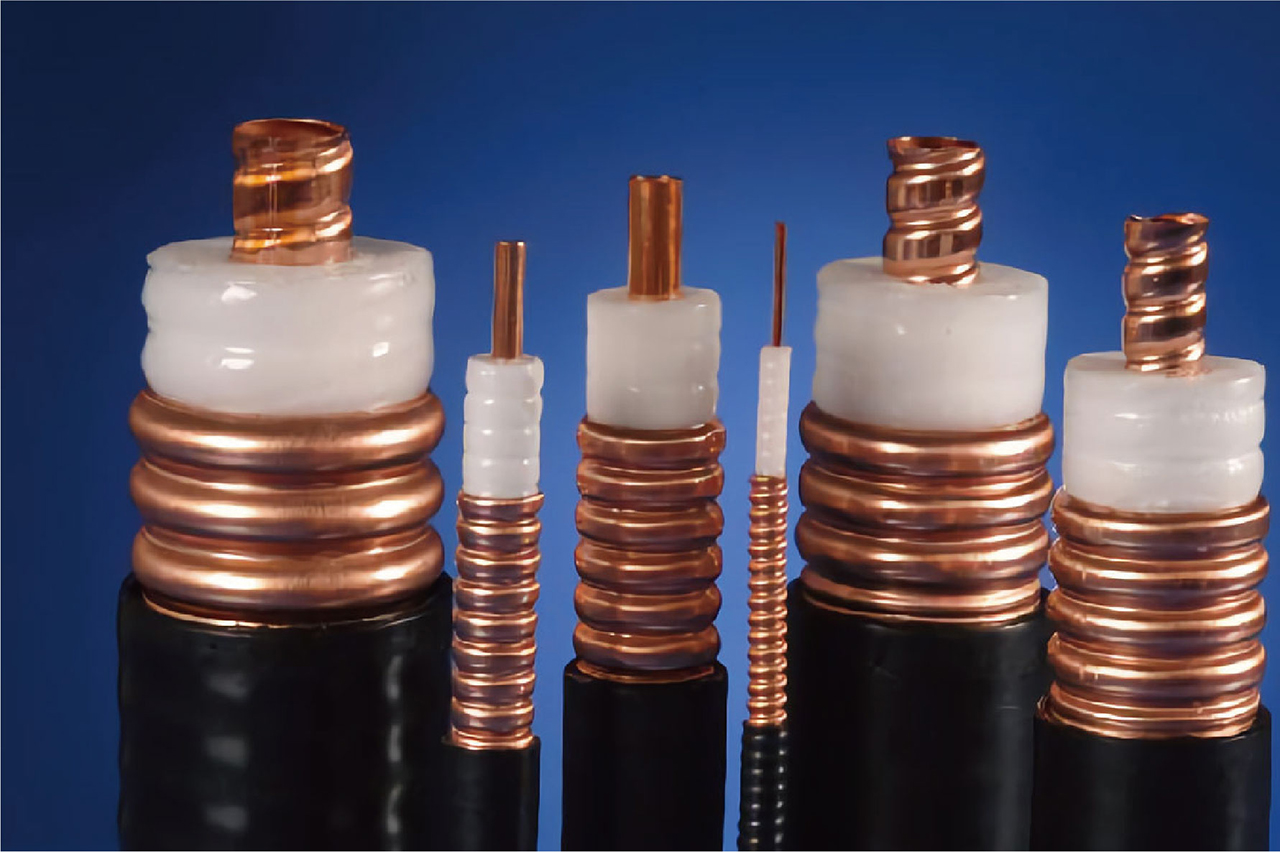

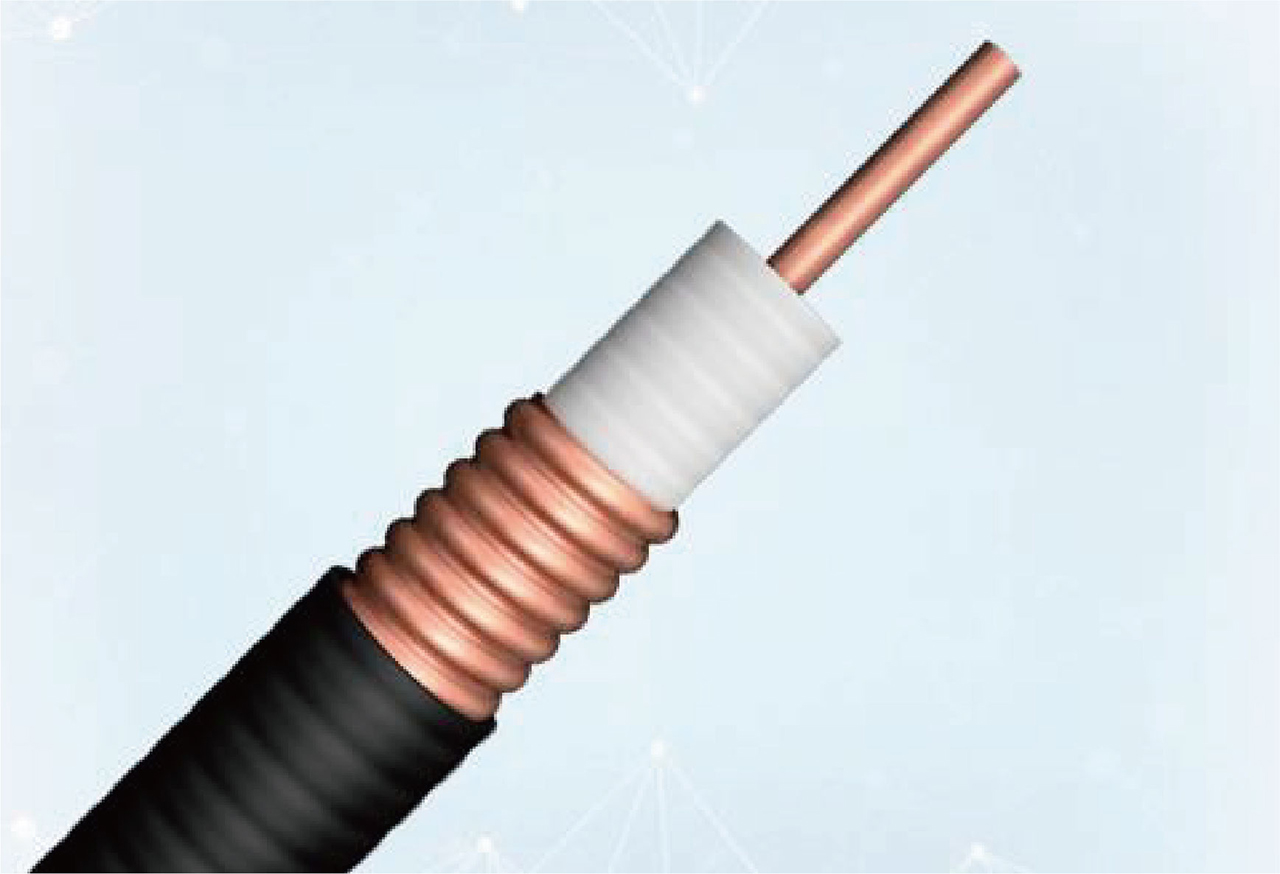

It is mainly used for RF cable of mobile communication base station and outer conductor of leakage cable, which plays the role of signal transmission

4+
Views: 8,976
Inquire Now



product details

Mark GB JIS ASTM
TU0、TU1、TU2、T2 C1020、C1100 C10200、C10300
C11000
Executive standard GB/T11091、JISH3100、ASTMB152
Main application It is mainly used for RF cable of mobile communication base station and outer conductor of leakage cable, which plays the role of signal transmission
Thickness range mm   0.07-0.11 0.11-0.18 0.18-0.32
tolerance ±0.004 ±0.005
Width range mm   Determined by the demand
tolerance ±0.1
Strength of extense MPa ≥200 230-270
Ductility % ≥20 ≥30
Vickers hardness HV 50-60
Electric conductivity %IACS ≥99



Product Usage
