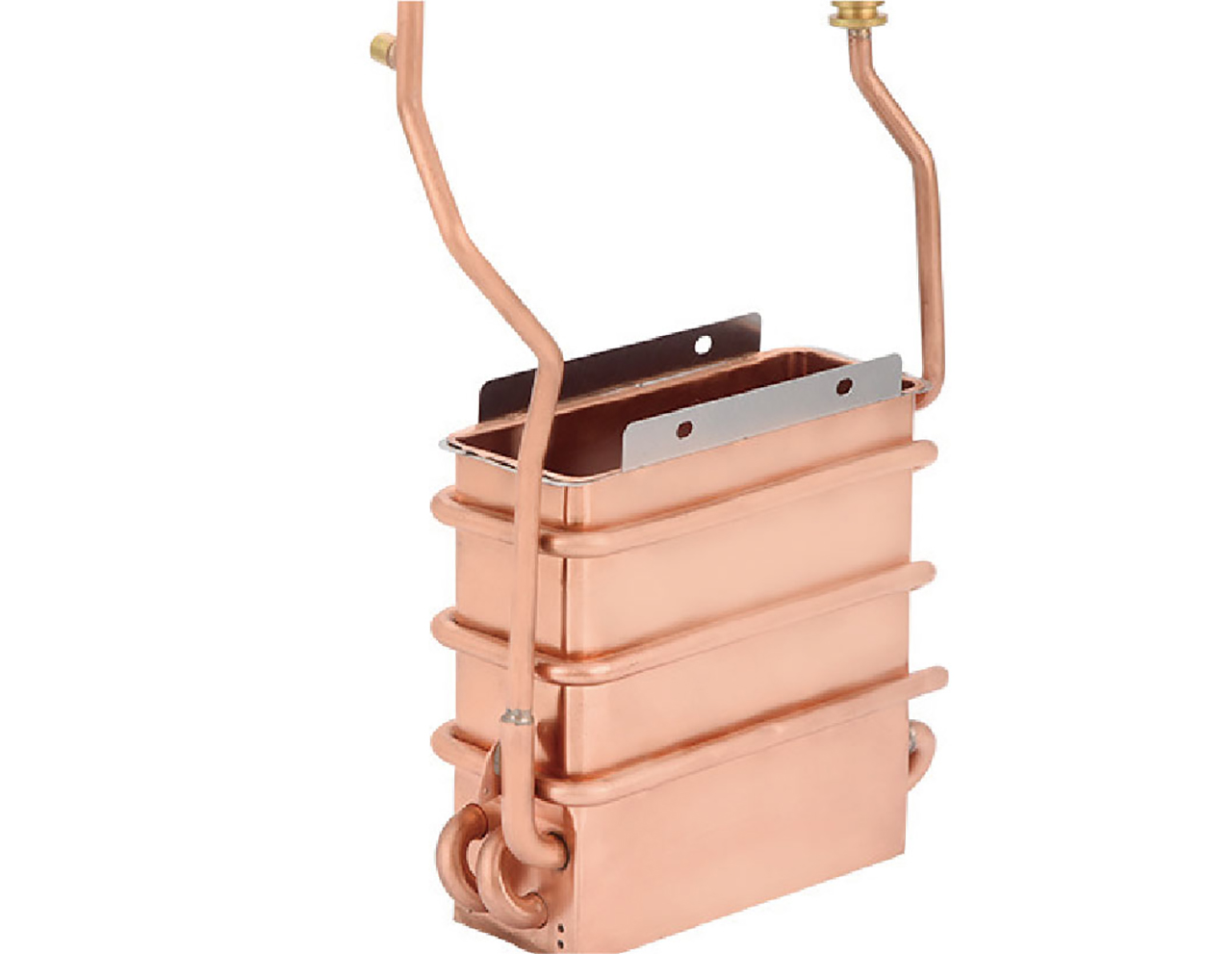

It is mainly used to manufacture heat exchanger covers and plates, heat exchanger plates of automobile tank, components of air cooler, etc
Mark | GB | JIS | ASTM | ||||||||||
T2、TP2 | C1020、C1100、C1220 | C11000、C12200 | |||||||||||
Executive standard | GB/T2059、JISH3100、ASTMB152 | ||||||||||||
Main application | It is mainly used to manufacture heat exchanger covers and plates, heat exchanger plates of automobile tank, components of air cooler, etc | ||||||||||||
Thickness range (mm) |
| 0.1-0.2 | 0.2-0.5 | 0.5-0.7 | 0.7-1.0 | ||||||||
tolerance | ±0.005 | ±0.01 | ±0.02 | ±0.025 | |||||||||
Width range (mm) |
| ≤600 | |||||||||||
tolerance | ≤400 ±0.2,400-600 ±0.3 | ||||||||||||
Strength of extense (MPa) | 210-275 | ||||||||||||
Ductility (%) | ≥25 | ≥35 | ≥35 | ||||||||||
Vickers hardness(HV) | 50-60 | 50-60 | 55-75 | ||||||||||
Erishen value (mm) | ≥8.0 |
