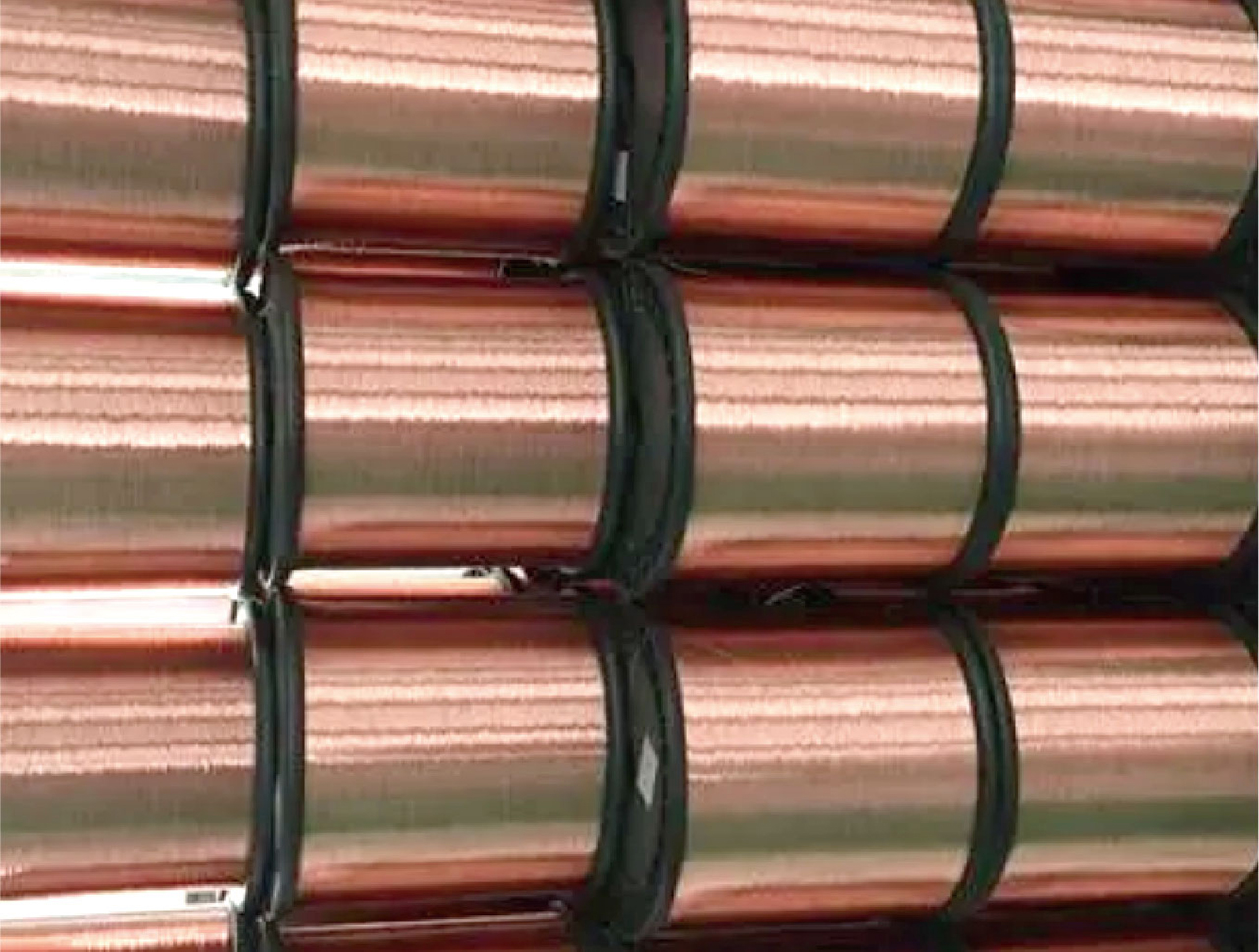

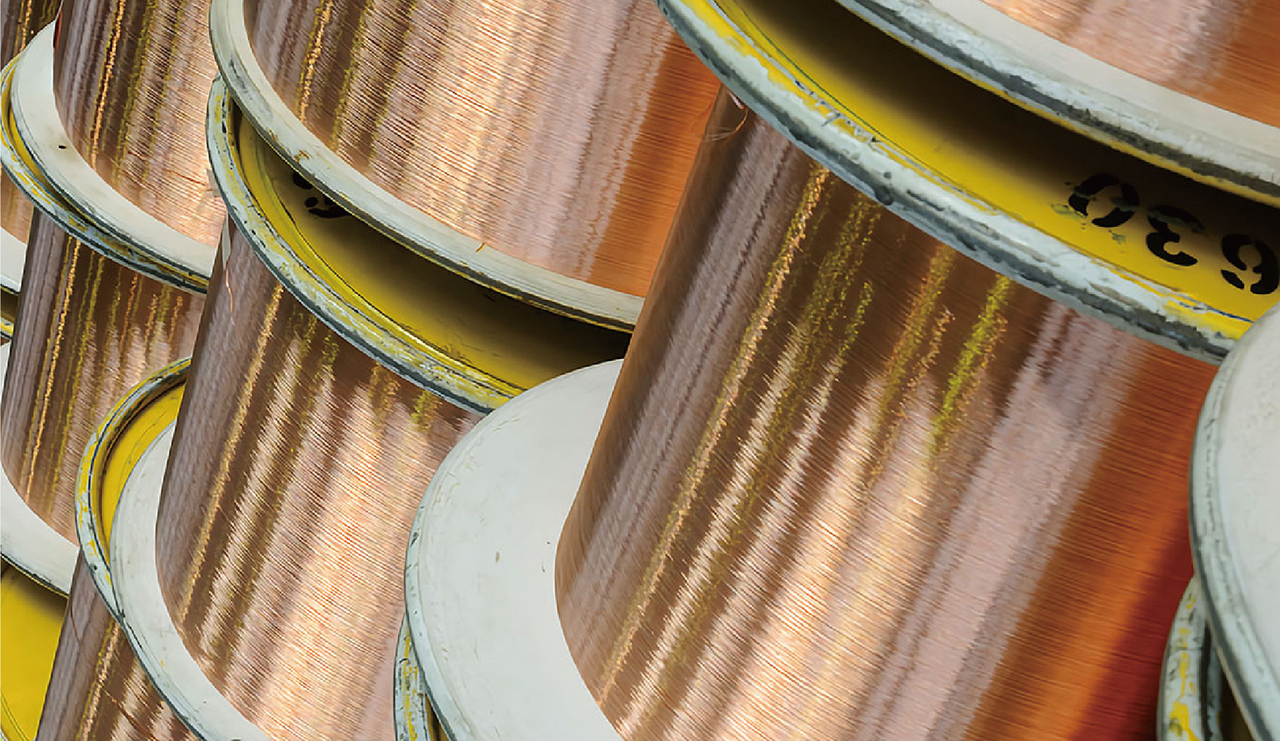

Copper strip for cladding

Copper strip for cladding

It is mainly used to manufacture outer covering cladding layer of copper-clad aluminium conductor. As the inner conductor core wire of RF cable, it transfers signal

0
Views: 389
Inquire Now



product details

Mark GB JIS ASTM
TU0、TU1、TU2、T2 C1020、C1100 C10200、C10300
C11000
Executive standard GB/T2059、JISH3100、ASTMB152
Main application It is mainly used to manufacture outer covering cladding layer of copper-clad aluminium conductor. As the inner conductor core wire of RF cable, it transfers signal
Thickness range mm   0.2-0.35 0.35-0.6 0.6-1.3
tolerance ±0.005 ±0.008 ±0.015
Width range mm   Determined by the demand
tolerance ±0.1
Strength of extense MPa ≥230
Ductility % ≥30
Vickers hardness HV 50-65
Electric conductivity %IACS ≥99
Product Usage
